Infrared Radiant Heating Panels

Combustion Research Corporation's infrared radiant heating panels are engineered to deliver 30–50% energy savings compared to conventional forced-air heating systems. Infrared heat warms people, floors, and objects directly without heating and re-circulating air, which eliminates stratification losses and dramatically reduces operating costs in high-bay or drafty industrial facilities.

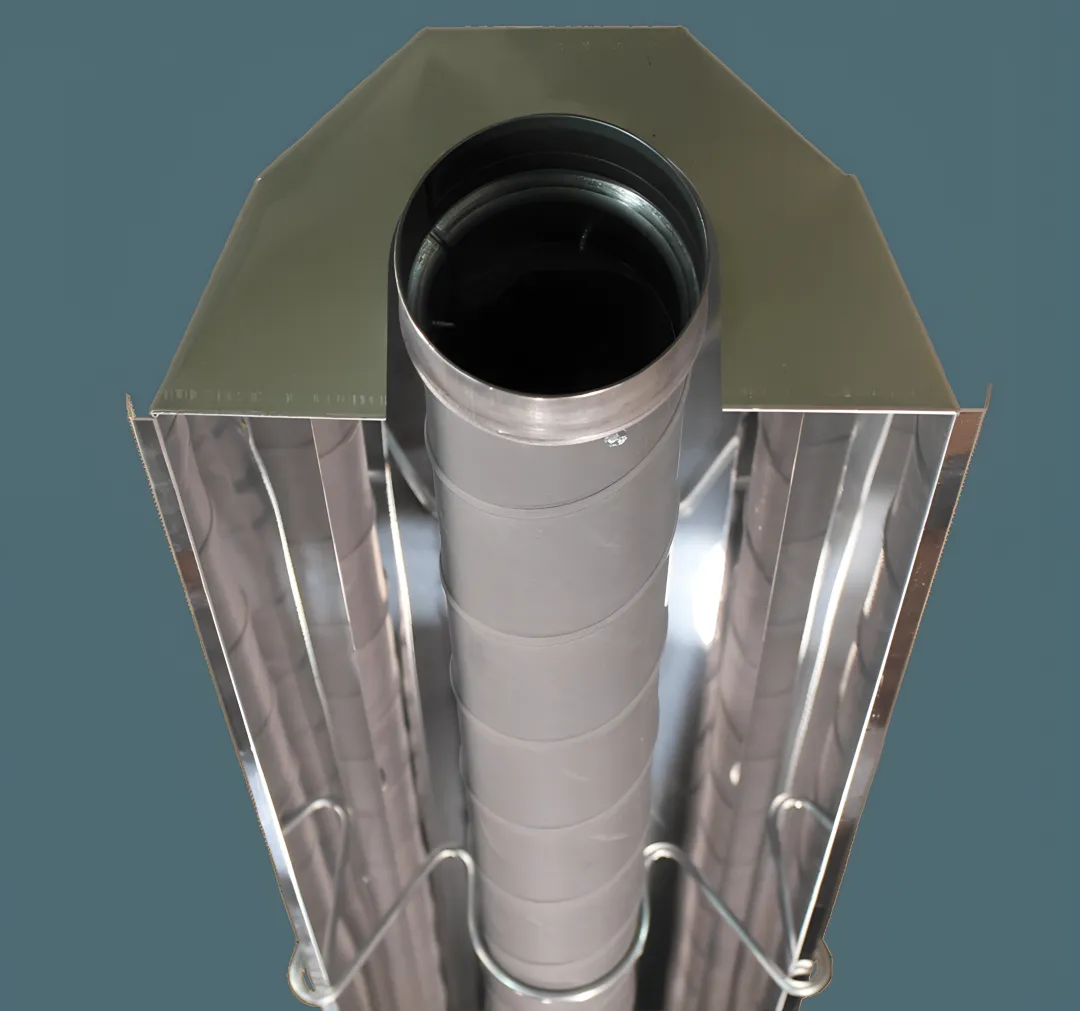

Yes. Products such as the Reflect-O-Ray 4DI EDS and Reflect-O-Ray 4.0 EDS are available with stainless steel burner housings specifically engineered for chloramine-laden natatoriums, high-humidity ice arenas, road-salt-exposed car wash bays, chemical processing facilities, and plating shops. Radiant tubing is constructed from corrosion-resistant aluminized steel throughout the full product range.

The product range spans 30,000 BTU/hr up to 250,000 BTU/hr to accommodate small service bays and large industrial facilities alike. Synergy ceramic burner heaters start at 30K BTU for spot or zone heating, while Reflect-O-Ray EDS and Omega II vacuum-fired and power-vented systems reach dual-burner inputs of up to 250K BTU/hr with low-fire approximately 30% less.

It depends on the system type. Vacuum-fired Reflect-O-Ray EDS systems and power-vented Omega II PEP systems require venting. Synergy high-intensity ceramic burner heaters require no direct venting and involve fewer roof penetrations, making them well-suited for protected outdoor spaces, covered patios, loading docks, and dealership canopies where venting is impractical.

Yes. All products in the infrared radiant heating panel lineup carry CSA certification (formerly A.G.A. & CGA). Select products are additionally certified to ANSI Z83.20 / CSA 2.34 standards. Every unit undergoes 100% factory testing prior to shipment, including 3-try direct spark ignition verification and 100% safety lockout confirmation, ensuring compliance and reliability from day one.

Yes. Combustion Research's product family supports both applications. Reflect-O-Ray EDS vacuum-fired systems can be custom-engineered to heat facilities from 500 sq ft to over 1,000,000 sq ft for total building coverage. Synergy ceramic burner heaters and Omega II PEP systems are ideal for spot or zone heating at workstations, loading docks, wash bays, and covered outdoor commercial spaces where instant on-demand heat is required.
