Overhead Radiant Tube Heater: Complete Guide

Yes. Radiant tube heaters are efficient because they heat floors, equipment, inventory, and people directly instead of spending energy warming the entire air volume. In high-bay or door-cycling facilities, Combustion Research systems commonly deliver 30-50% energy savings over conventional forced-air heating. Vacuum systems such as Reflect-O-Ray are generally more efficient than power-vented units because they support tighter combustion control and longer effective burn length.

Gas-fired radiant tube heaters do not use a lot of electricity. Natural gas or propane provides the heat, while electricity is mainly used for ignition, controls, safety monitoring, and venting components. Electric infrared systems, such as Solaira Alpha, use electricity as the primary fuel and are best where gas is unavailable or impractical. For most large facilities, CRC recommends evaluating gas-fired tube heaters first for operating cost.

Sizing depends on square footage, insulation, ceiling height, door cycle frequency, fuel type, mounting height, and the comfort target at occupied levels. As a general reference, warehouses may range from 25-40 BTU/sqft in insulated low-bay spaces to 40-65+ BTU/sqft in high-bay or poorly insulated buildings. Combustion Research provides calculators and engineering support for facility-specific layouts.

Vacuum radiant tube systems, such as Reflect-O-Ray, are custom-engineered negative-pressure systems used for large or complex facilities where optimum coverage and efficiency matter most. Power-vented systems, such as Omega II and Serengeti-IR, are unitary systems that are faster to specify for smaller warehouses, service bays, workshops, and straightforward zones while still delivering radiant energy savings over forced air.

Clearance to combustibles varies by model, BTU input, mounting orientation, reflector configuration, and installation height. Reflect-O-Ray and Omega II clearances can range widely, so each project should follow the product submittal sheets and coordinate with the local authority having jurisdiction. Combustion Research provides specification documents to help engineers verify mounting locations, roof or sidewall venting, and code compliance.

Pricing is quoted per facility because the system must match square footage, ceiling height, BTU load, fuel source, construction material, venting approach, and controls. A compact Serengeti-IR package for a single bay is different from a custom Reflect-O-Ray vacuum system for a million-square-foot warehouse. Quotes are available through a local representative or by calling Combustion Research Corporation at 888-852-3611.

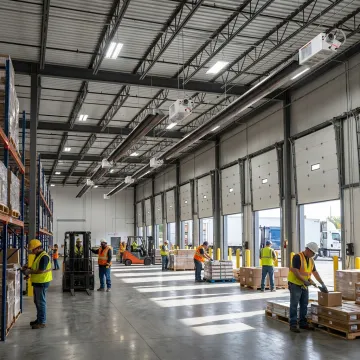

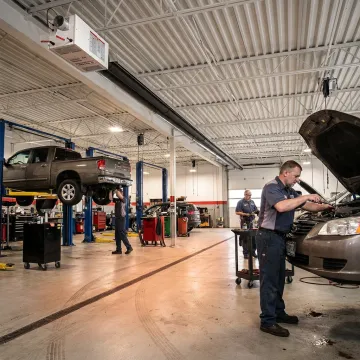

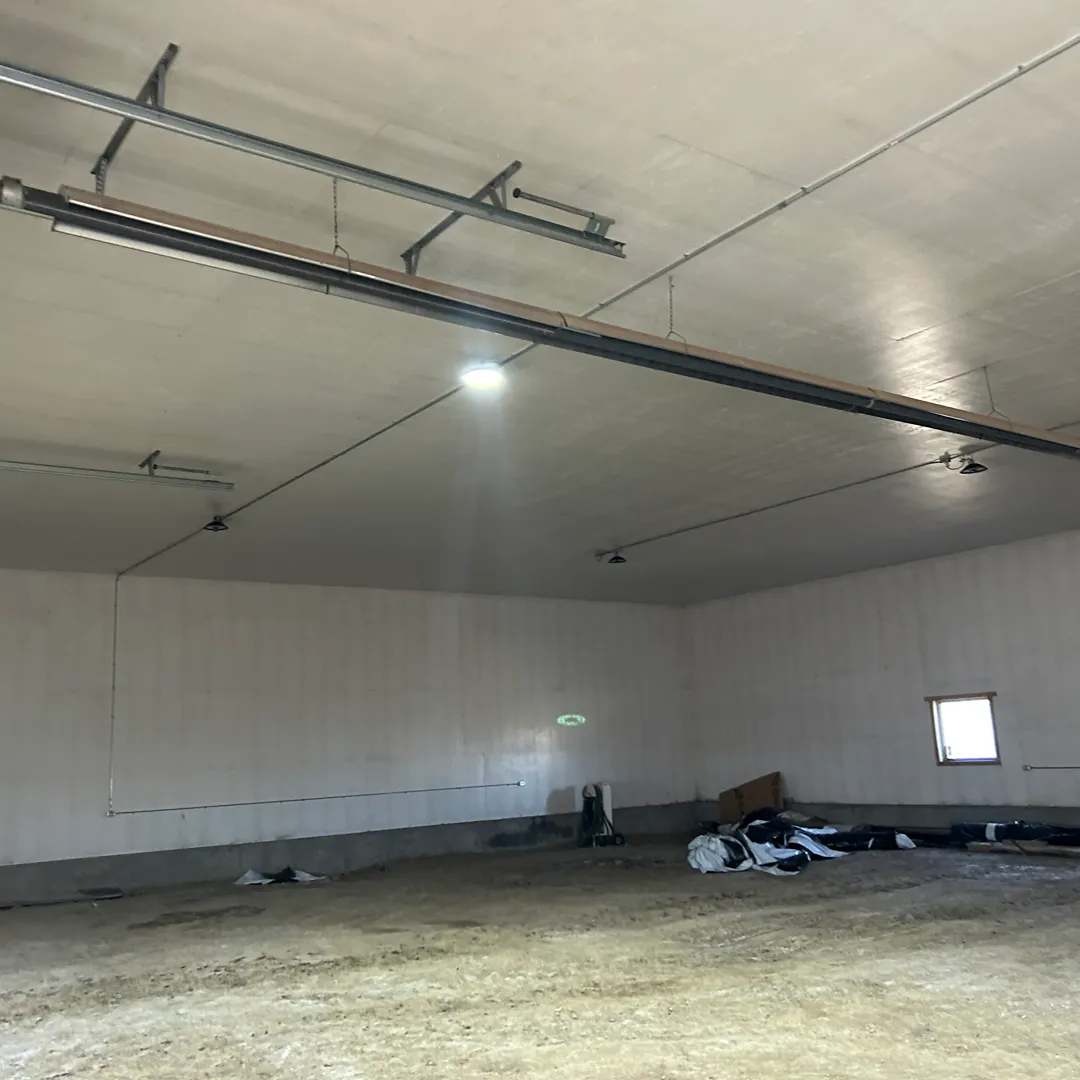

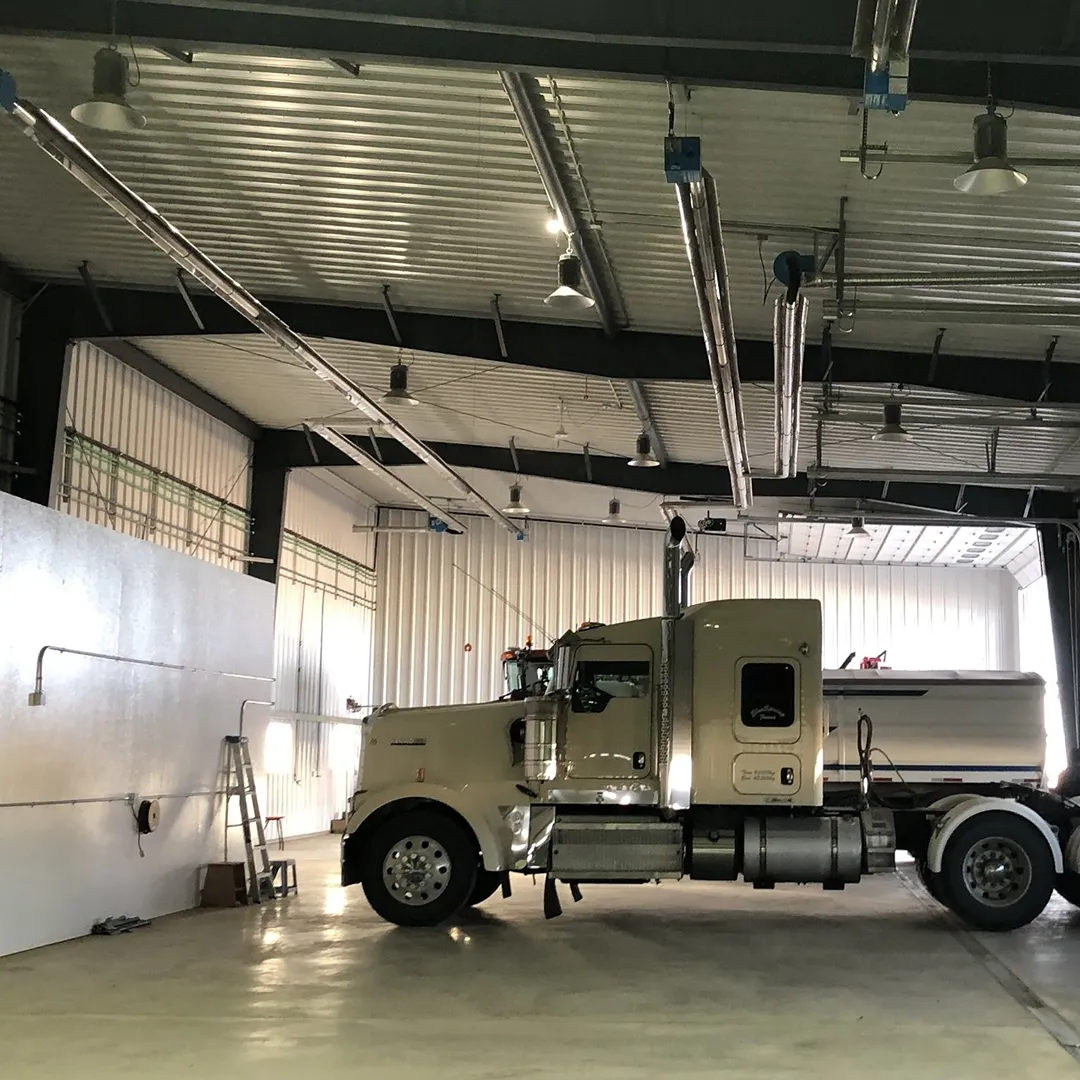

Overhead radiant tube heaters are commonly used in warehouses, manufacturing plants, aircraft hangars, auto dealership service bays, CNG repair facilities, military vehicle bays, natatoriums, ice arenas, agricultural buildings, wash bays, and pole barns. They are especially useful in high-bay spaces, buildings with frequent overhead door openings, and facilities where heating occupied surfaces is more efficient than heating the full air column.

Combustion Research tube heaters are designed for durable industrial operation with no filter-based maintenance like many forced-air systems. Key protections include direct spark ignition, safety lockout, electronic flame monitoring, pre-purge cycles, corrosion-resistant aluminized steel tubing, and factory testing. Omega II, Reflect-O-Ray, and Serengeti-IR systems include a 10-year radiant tube warranty for internally created corrosion and a 3-year burner control warranty.
