Infrared Heating: Complete Guide for Facilities

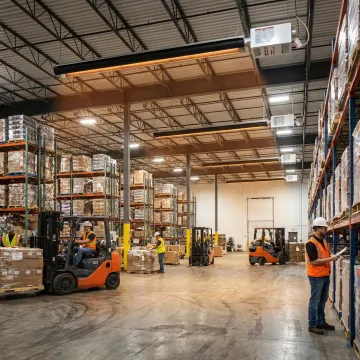

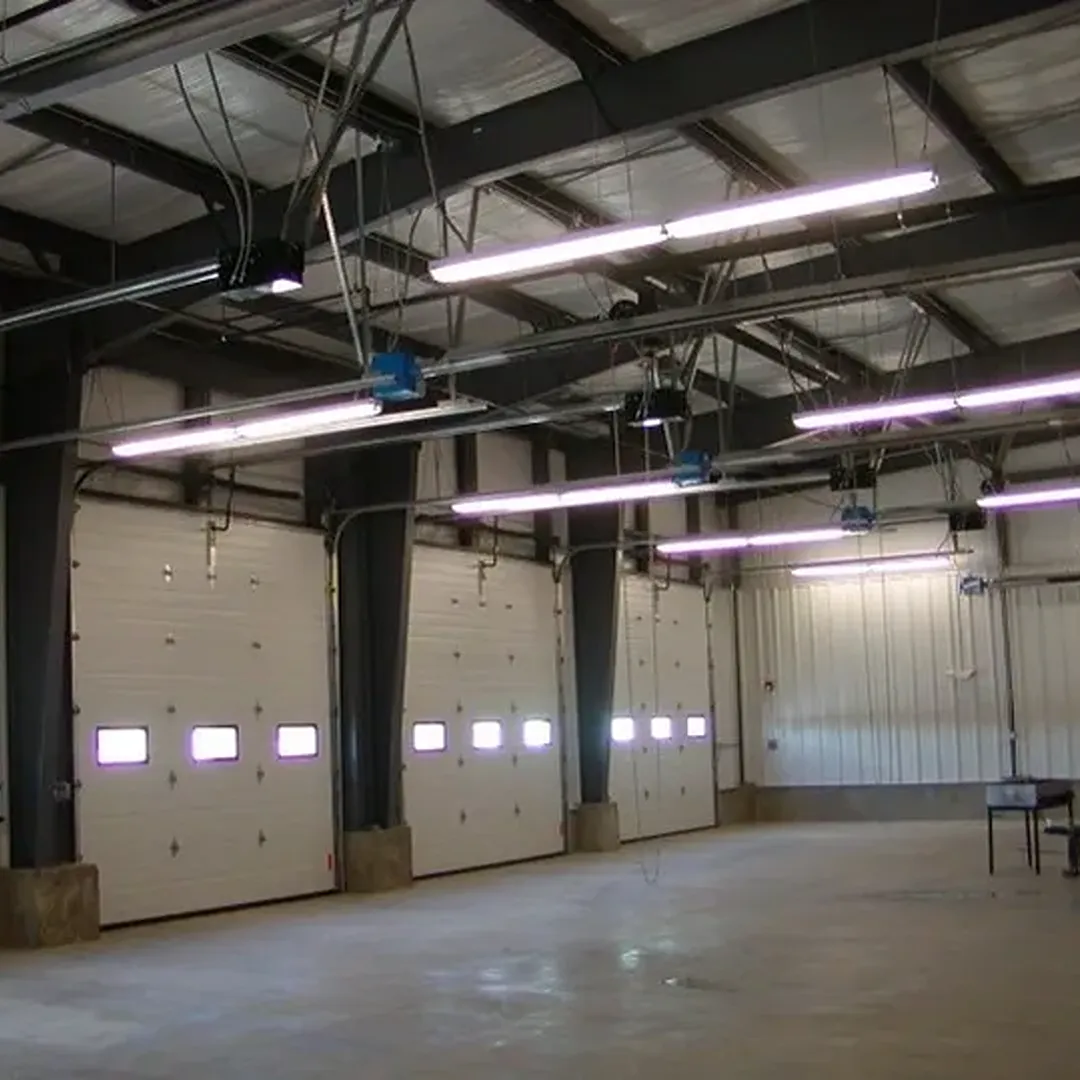

Infrared heating is a strong choice for many commercial and industrial facilities because it heats floors, equipment, inventory, and people directly instead of trying to condition unused air near the ceiling. It is especially effective in high-bay buildings, warehouses, hangars, service bays, and door-cycling spaces. Combustion Research Corporation systems can reduce operational costs by 30-50% compared with conventional forced-air heating.

Infrared heat is widely used for comfort heating because it delivers warmth directly to surfaces without blowing air across the space. In commercial environments, that can help reduce dust movement and avoid the drafts associated with forced-air systems. It should still be applied with proper sizing, mounting height, clearances, ventilation, and certified equipment appropriate for the facility and fuel type.

Radiant infrared heating emits energy that travels through the air and warms the surfaces it reaches, including floors, tools, vehicles, equipment, and occupants. Those warmed surfaces then re-radiate heat into the space. This is different from forced air, which primarily heats the air first and often loses efficiency in tall buildings where warm air rises or exits through large doors.

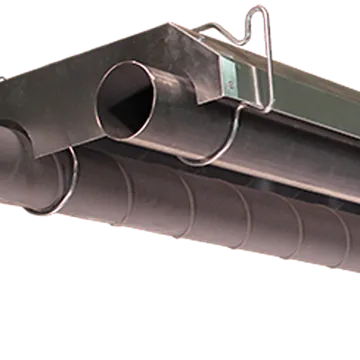

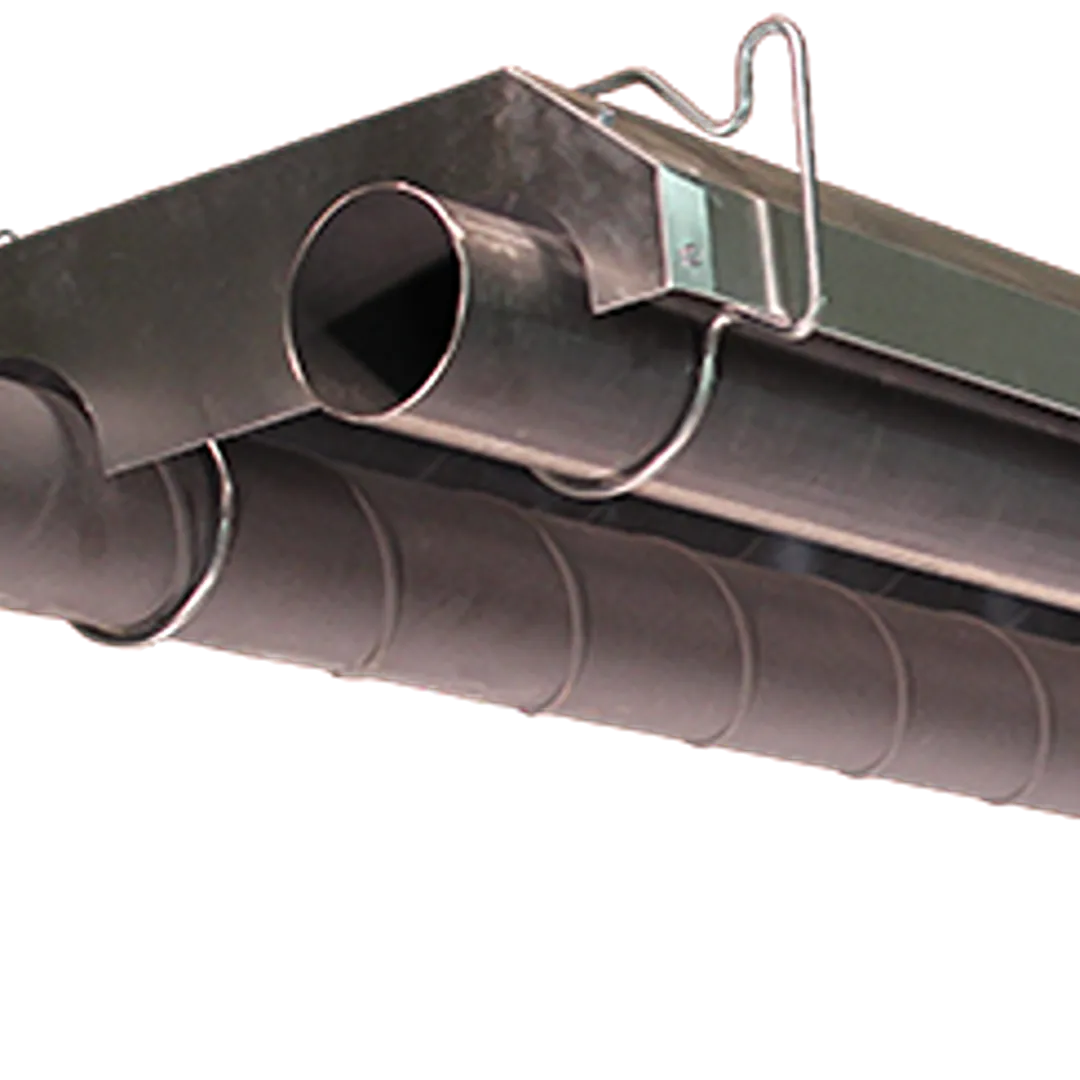

Gas-fired radiant tube systems are typically best for large indoor commercial and industrial spaces with natural gas or propane available. Electric infrared systems can be useful where gas is impractical, especially in protected outdoor or semi-outdoor commercial areas. High-intensity ceramic heaters are often selected for spot or zone heating, while low-intensity radiant tube systems provide broader, more even coverage.

Sizing depends on square footage, ceiling height, insulation, door cycle frequency, fuel type, building use, and comfort targets. CRC reference guidance suggests warehouses may range from 25-40 BTU per square foot for insulated low-bay spaces to 65+ BTU per square foot for poorly insulated or frequently opened facilities. Final sizing should use product calculators, specifications, and engineering review.

Clearance requirements vary by model, configuration, mounting angle, and application. Reflect-O-Ray and Omega II radiant tube systems may require different clearances depending on orientation, while Synergy high-intensity ceramic systems have their own submittal requirements. Always consult the product specification sheets and coordinate with the authority having jurisdiction before installation, especially in classified or vehicle service environments.

Costs are quoted by facility because system design depends on square footage, ceiling height, BTU requirements, fuel type, construction material, gas piping, electrical drops, and venting needs. Vacuum-engineered systems, power-vented packages, ceramic heaters, and electric units all have different installation considerations. Combustion Research Corporation supports quotes through its North American representative network and customer service at 888-852-3611.

Combustion Research Corporation offers strong warranty coverage on key product families, including a 10-year radiant tube warranty for internally created corrosion on Omega II, Reflect-O-Ray, and Serengeti-IR systems, plus a 3-year burner control warranty. Synergy systems carry a 1-year limited warranty. Warranty terms help support long-term planning for industrial and commercial heating investments.
