Commercial Heating Systems: Complete Guide for Facilities

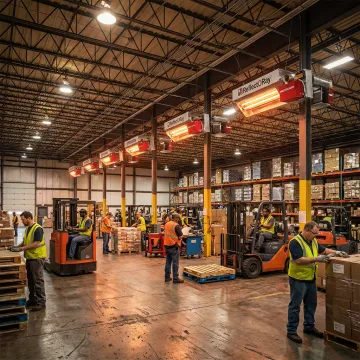

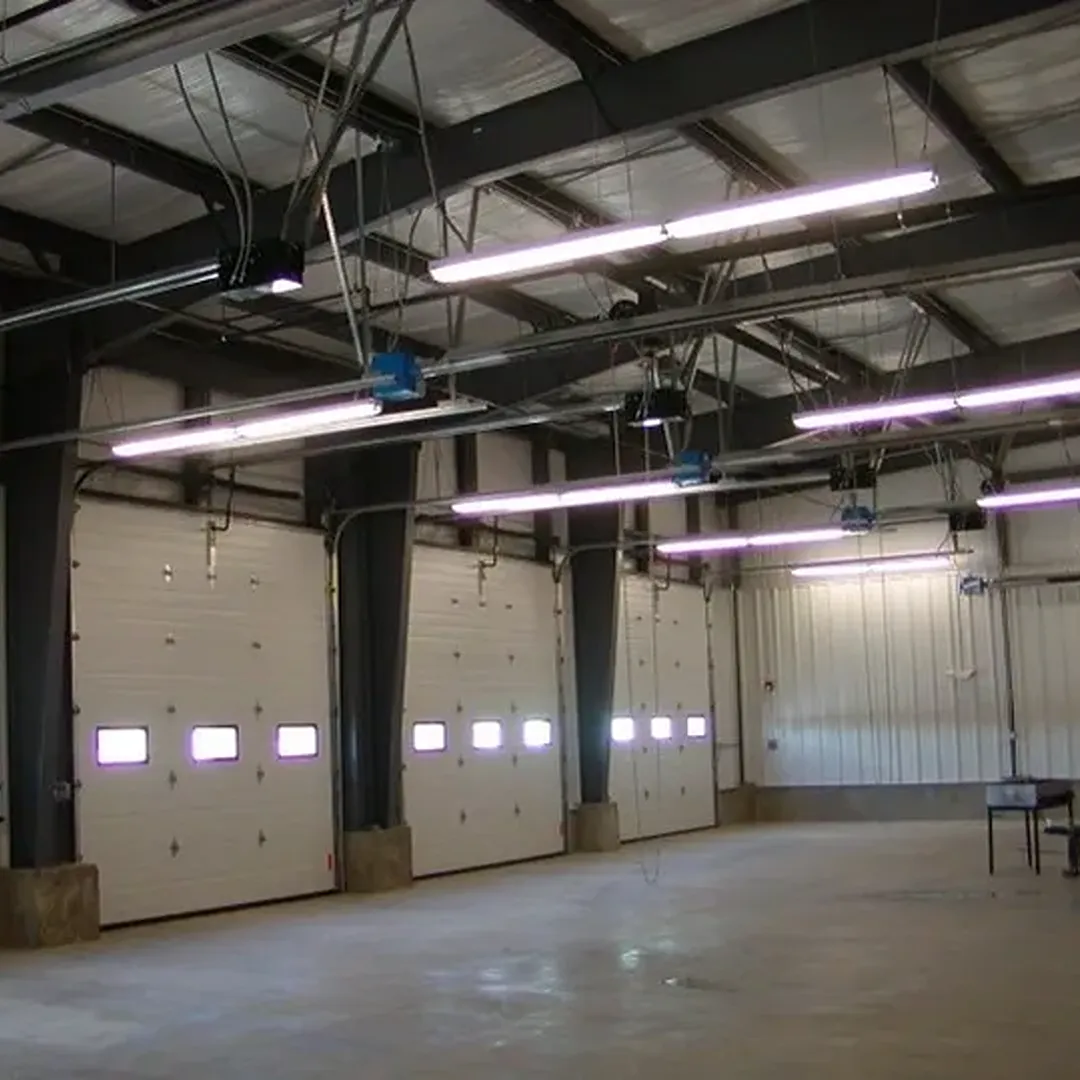

The best heating system for a business depends on the building type, ceiling height, insulation, door cycle frequency, fuel availability, and occupied work zones. For high-bay warehouses, hangars, dealerships, and manufacturing spaces, radiant infrared often performs better than forced air because it heats floors, equipment, and people directly while reducing heat loss during door openings.

Radiant infrared systems deliver energy to surfaces and occupants rather than heating the full air volume first. In high-ceiling buildings, this avoids stratification, where warm air collects near the roof. Combustion Research Corporation systems are documented to reduce energy use by 30-50% compared with conventional forced-air heating in comparable commercial applications.

Vacuum systems such as Reflect-O-Ray are custom-engineered for larger or more complex facilities and are generally more efficient because negative pressure supports controlled combustion and longer effective burn length. Power-vented systems such as Omega II are unitary, single-side-vented systems that are faster to specify for smaller warehouses, service bays, or straightforward zones.

Commercial infrared systems can be used in warehouses, aircraft hangars, manufacturing plants, auto dealership service bays, CNG repair shops, ice arenas, natatoriums, military vehicle bays, loading docks, agricultural buildings, and protected outdoor commercial areas. Product selection depends on BTU requirements, mounting height, corrosion exposure, venting needs, and whether full-building or spot-zone heating is required.

BTU sizing is based on square footage, ceiling height, insulation level, door openings, ventilation, and facility use. Reference guidelines range from roughly 25-40 BTU per square foot for insulated low-bay warehouses to 65+ BTU per square foot for poorly insulated or frequently door-cycled buildings. Combustion Research Corporation provides calculators and engineering data for project-specific sizing.

Reflect-O-Ray, Omega II, and Serengeti-IR radiant tube systems are available for natural gas or propane applications, while Solaira Alpha provides an electric infrared option for facilities where gas is impractical. Some Reflect-O-Ray variants also support oil-fired applications for off-grid or rural commercial facilities without natural gas access.

Clearance requirements vary by model, mounting orientation, heat input, and configuration. Reflect-O-Ray and Omega II clearances commonly range from 12 inches to 60 inches, but the correct value must come from product submittal sheets. Mechanical engineers and contractors should coordinate with the authority having jurisdiction for code review before installation.

Quoted pricing is based on facility square footage, ceiling height, BTU sizing, fuel type, system configuration, construction material, gas piping, electrical drops, and venting requirements. Facility managers can request a quote through a North American representative or call 888-852-3611. Engineering reference materials and calculators are also available for planning and budgeting.
