Infrared Radiant Heating for Warehouses

Factories and industrial plants are often best heated with radiant infrared systems because they warm workers, floors, equipment, and work zones directly instead of trying to heat the entire air volume. For high-bay buildings, door cycling, process exhaust, or spot-zone needs, Combustion Research Corporation typically evaluates Reflect-O-Ray, Omega II, or Synergy systems based on ceiling height, BTU load, ventilation, and occupied work areas.

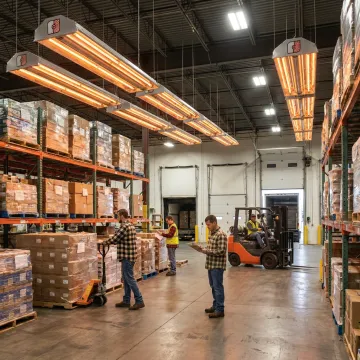

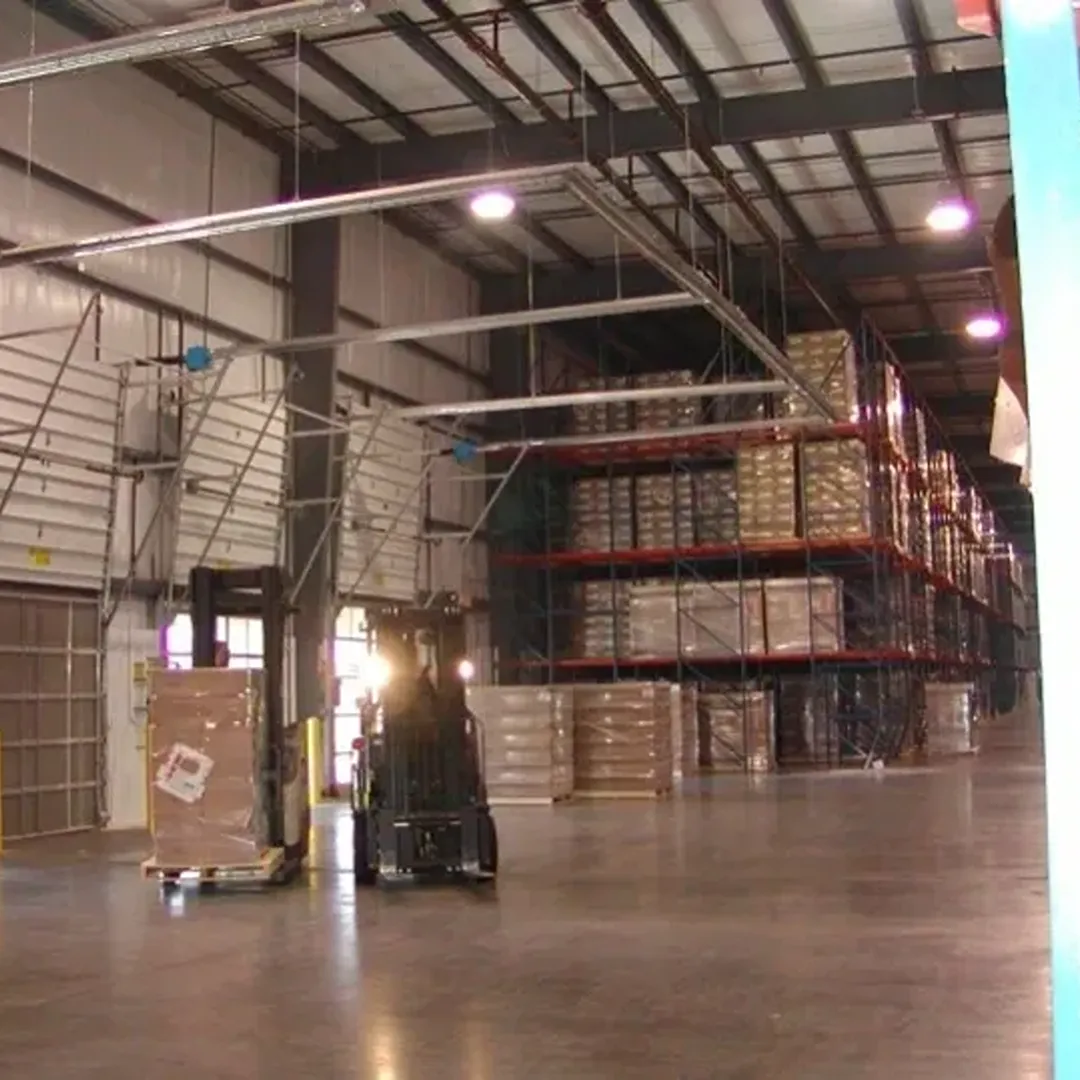

For many warehouses, low-intensity infrared radiant tube heating is a strong option because it targets the occupied level rather than the warm air collecting near the roof. Reflect-O-Ray vacuum systems are suited to large or high-bay warehouses, Omega II works well for smaller or zone-by-zone layouts, and Synergy high-intensity heaters provide fast spot heat at docks, packing benches, and workstations.

Infrared radiant heating transfers energy to surfaces and people, similar to sunlight, instead of relying on moving warm air. In a warehouse, that means the floor, inventory, racking, equipment, and workers absorb heat and re-radiate comfort into the space. This approach helps reduce stratification, improves recovery after dock doors close, and avoids stirring dust or airborne contaminants.

Warehouse BTU requirements depend on insulation, ceiling height, door cycling, climate, and desired indoor temperature. As a rule of thumb, insulated low-bay warehouses may need 25–40 BTU per square foot, while high-bay or less insulated facilities may require 40–65 BTU per square foot or more. CRC recommends using engineering calculators and project-specific sizing for accurate system selection.

Radiant systems can reduce operational costs by 30–50% compared with conventional forced-air systems in comparable commercial applications. Forced air heats the air column, which rises and escapes during dock-door cycles. Radiant infrared deposits energy into occupied surfaces, so recovery is faster and less fuel is wasted reheating displaced air after each door opening.

Warehouse radiant heating is quoted by facility square footage, ceiling height, BTU sizing, fuel type, system configuration, gas piping, electrical drops, and venting requirements. Large vacuum systems are custom engineered, while unitary power-vented systems may be simpler to deploy. Reflect-O-Ray 6.0 EDS can reduce utility drops by up to two-thirds in certain high-bay warehouse applications.

Clearance requirements vary by product, mounting orientation, BTU input, and surrounding materials. Typical Reflect-O-Ray and Omega II clearances may range from 12 inches to 60 inches, but every project should follow the current submittal sheet and coordinate with the authority having jurisdiction. Proper clearance review is essential around racking, stored goods, sprinkler systems, and combustible materials.

Where natural gas or propane is available, gas-fired radiant tube systems usually provide lower operating cost for large warehouses. Electric infrared heaters can be useful where gas is impractical or unavailable, especially in semi-outdoor or protected areas. Combustion Research Corporation recommends evaluating Omega II or Reflect-O-Ray gas systems first for most warehouse applications because of long-term energy economics.
