Gas Radiant Tube Heater: Complete Guide

Propane radiant tube heaters can be highly efficient because infrared energy warms floors, equipment, inventory, and people directly instead of heating the entire air volume first. Combustion Research systems commonly deliver 30-50% energy savings over conventional forced-air heating in commercial applications. Efficiency depends on ceiling height, insulation, door cycling, burner sizing, and whether a vacuum or power-vented system is specified.

Radiant tube heaters are safe when properly engineered, installed, vented, and maintained according to manufacturer specifications and local code requirements. Combustion Research systems include 3 Try Direct Spark Ignition with 100% safety lockout, electronic flame monitoring, pre-purge cycles, and CSA-certified designs. Required clearances to combustibles, mounting height, ventilation, and gas piping must always be reviewed during specification.

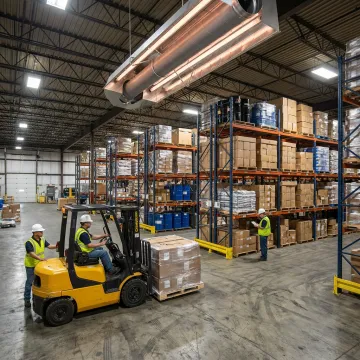

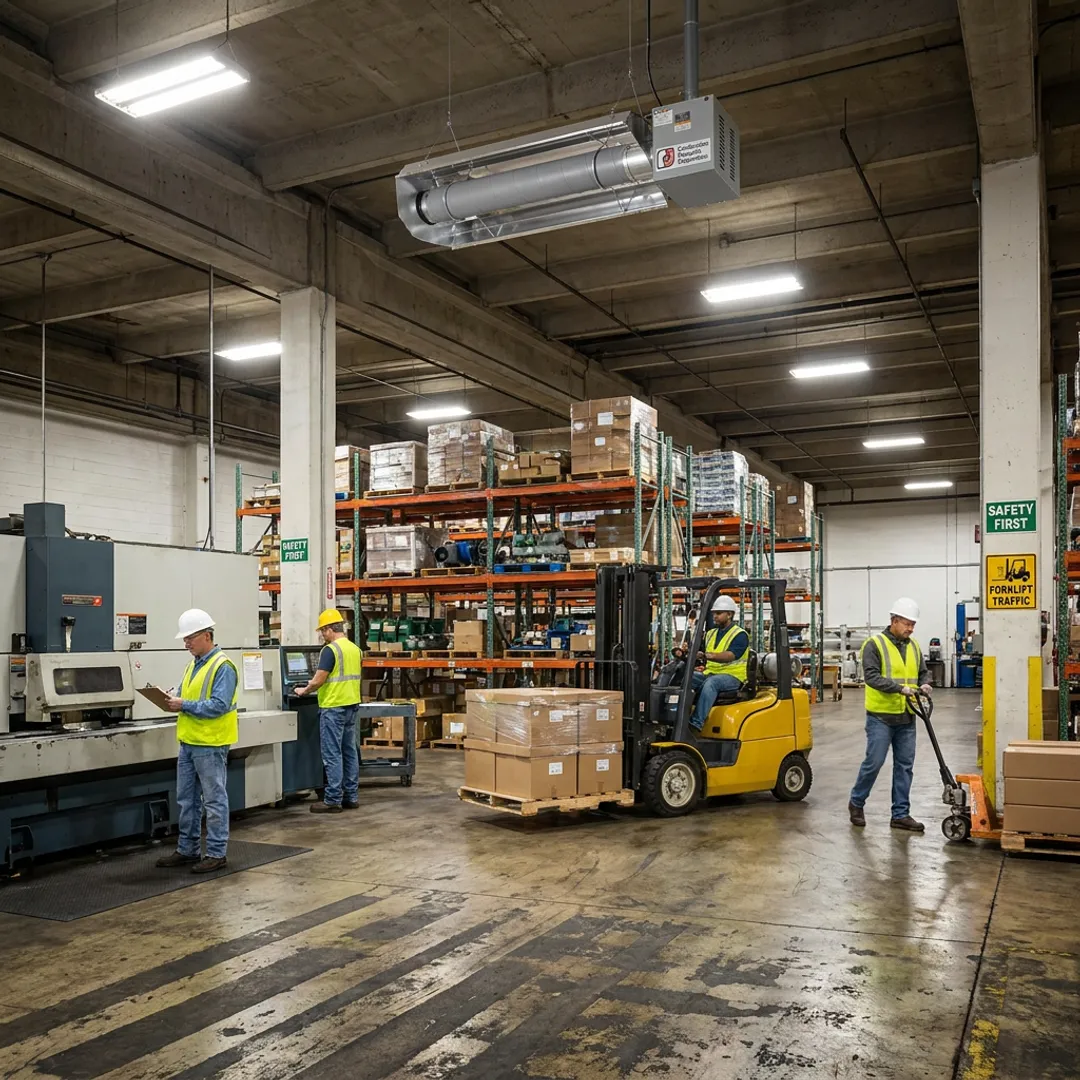

A gas radiant tube heater is an infrared heating system that burns natural gas or propane inside a heat exchanger tube. The heated tube emits low-intensity infrared energy downward, warming people and surfaces below. This makes it effective in high-bay, drafty, or door-cycling facilities where forced-air heat rises, stratifies, or escapes before providing comfort at the occupied level.

Sizing depends on square footage, ceiling height, insulation, door cycle frequency, fuel type, and the target comfort level. As a broad engineering reference, warehouses may require 25-40 BTU per square foot in insulated low-bay conditions and 40-65 BTU per square foot in high-bay or less insulated spaces. Combustion Research provides calculators and representative support for facility-specific sizing.

Vacuum radiant tube systems, such as Reflect-O-Ray, use negative pressure and are custom-engineered for larger or more complex facilities. They are generally more efficient than power-vented systems because they allow tighter combustion control and longer effective burn length. Power-vented systems, such as Omega II, are unitary and often easier to specify for straightforward zones or smaller layouts.

Yes. Combustion Research radiant tube heaters are available for natural gas or propane, with certain product variants also supporting specialized fuels such as oil-fired configurations for off-grid applications. Fuel selection affects burner setup, manifold pressure, inlet pressure, operating cost, and availability. For most commercial buildings with gas service, natural gas is often evaluated first for operating economy.

Combustion Research documents 30-50% energy savings over comparable forced-air heating systems in many commercial and industrial applications. Savings come from heating occupied surfaces directly, reducing ceiling heat stratification, and recovering faster after overhead doors open. In some operating environments, reduced energy waste and improved zoning can significantly lower annual heating costs and support a payback period.

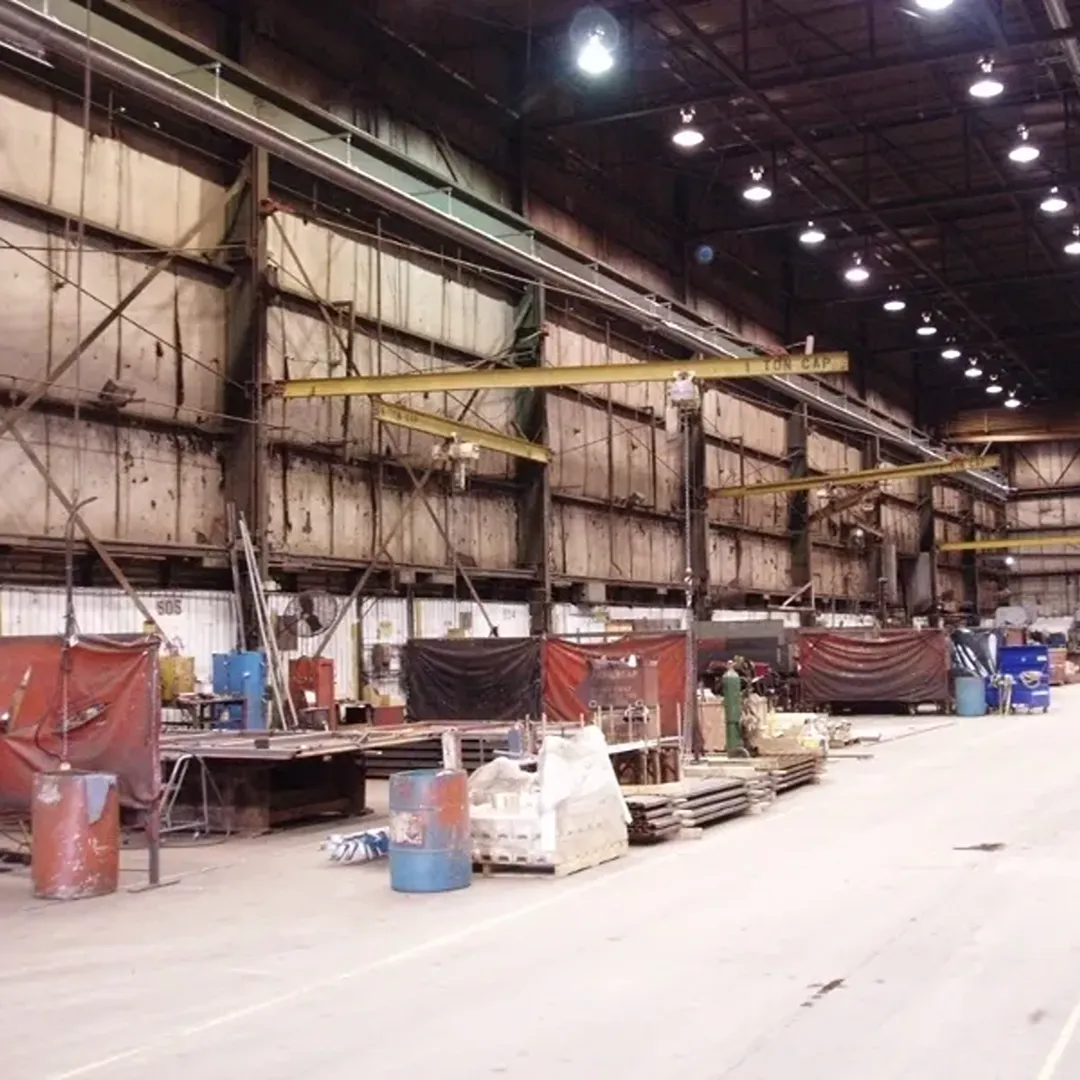

Gas radiant tube heaters are best suited for high-bay, hard-to-heat, or frequently opened facilities. Common applications include warehouses, manufacturing plants, aircraft hangars, auto dealership service bays, CNG repair shops, military vehicle bays, ice arenas, natatoriums, agricultural buildings, and shipping docks. They are especially valuable where forced-air systems lose heat through tall ceilings, exhaust, drafts, or door cycling.
