Warehouse Heating: Solutions & Buyer's Guide

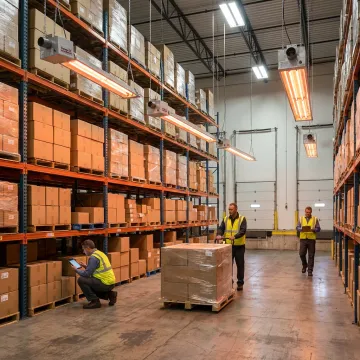

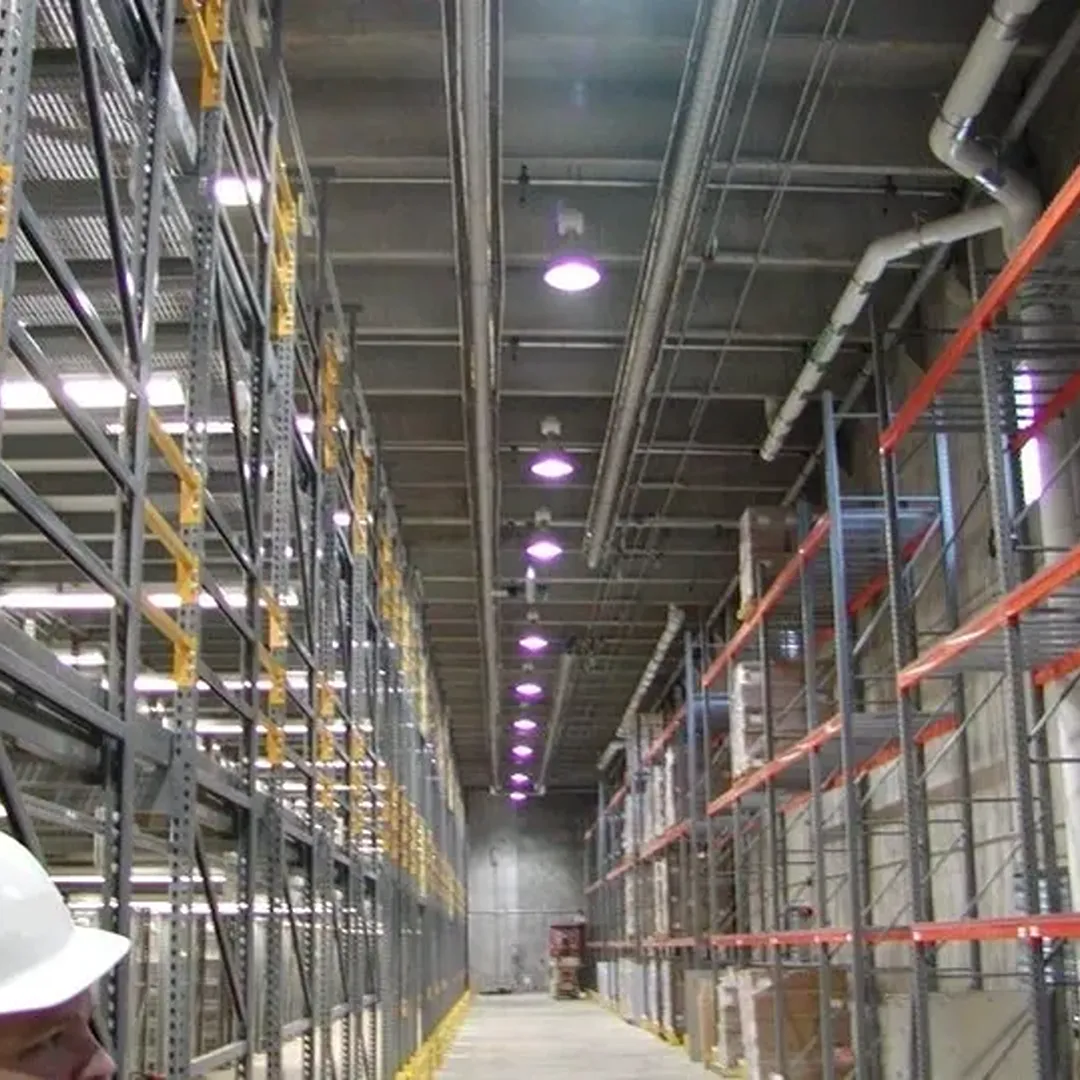

For many high-bay warehouses, radiant infrared heating is the most effective choice because it heats floors, inventory, equipment, and workers directly instead of warming the unused air column near the roof. Combustion Research Corporation’s systems are commonly specified for distribution centers, 3PL warehouses, loading docks, and large industrial buildings, with documented 30-50% energy savings compared with conventional forced-air systems.

Common warehouse heating options include forced-air unit heaters, low-intensity radiant tube heaters, high-intensity ceramic infrared heaters, and electric infrared heaters for protected semi-outdoor areas. CRC typically recommends Reflect-O-Ray vacuum systems for large warehouses, Omega II power-vented systems for smaller zones, Synergy ceramic heaters for spot heating, and Solaira electric infrared where gas is impractical.

Warehouse heater sizing depends on square footage, insulation, ceiling height, door-cycle frequency, fuel type, and the required comfort level at occupied areas. CRC’s engineering reference notes 25-40 BTU per square foot for insulated low-bay warehouses, 40-65 BTU per square foot for high-bay or less-insulated spaces, and higher densities for poorly insulated facilities with frequent dock-door cycling.

Radiant infrared heaters can reduce energy use because they do not rely on heating all the air in a tall warehouse. CRC documents 30-50% energy savings compared with conventional forced-air heating, and its value propositions note potential energy cost reductions up to 75% in certain applications. Actual savings depend on the existing system, operating schedule, building envelope, and utility costs.

Reflect-O-Ray vacuum systems are custom-engineered for large or complex facilities and are generally more efficient than power-vented systems because negative pressure supports tighter combustion control and longer effective burn length. Omega II power-vented heaters are unitary systems suited to straightforward footprints, smaller warehouses, or zone-by-zone deployments where a full custom vacuum system is not justified.

Gas-fired radiant tube systems usually deliver lower operating costs where natural gas or propane is available. Electric infrared can be useful where gas piping is impractical, especially in protected loading docks, covered entries, and semi-outdoor commercial spaces. CRC recommends evaluating gas-fired Omega II or Reflect-O-Ray systems first for most warehouse interiors, then considering Solaira Alpha electric heaters for specific electric-only applications.

System pricing is quoted by facility square footage, ceiling height, BTU sizing, fuel type, construction material, gas piping requirements, electrical drops, and venting needs. Reflect-O-Ray vacuum systems are custom-engineered, while Omega II and Serengeti-IR packages may be simpler to specify. CRC provides quote pathways through its North American representative network or by calling customer service at 888-852-3611.

CRC radiant tube systems include important manufacturer warranty coverage. Reflect-O-Ray, Omega II, and Serengeti-IR radiant tubes carry a 10-year warranty for internally created corrosion, and burner controls carry a 3-year warranty. Synergy systems carry a 1-year limited warranty. Equipment is factory tested, and many products are CSA Certified and MasterSpec listed for specification confidence.
