Radiant Heating: Complete Guide for Facilities

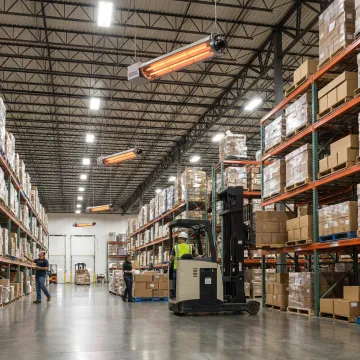

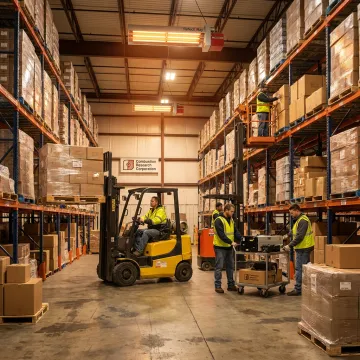

Radiant heating means heat is transferred directly from a warm surface or infrared emitter to people, floors, vehicles, tools, and equipment. In commercial infrared systems, energy travels as radiant heat rather than relying mainly on warm air circulation. This is especially useful in high-bay or drafty buildings because comfort remains at the occupied level, even when doors open or ceiling air stratifies.

Radiant infrared heating warms surfaces and occupants directly, while forced-air systems heat and move building air. In tall facilities, forced air often rises to the ceiling or escapes through loading doors. Radiant systems deposit energy into floors, inventory, and equipment, helping the space recover faster after door cycles and reducing wasted heat in unoccupied air volume.

Radiant heating is often ideal for warehouses, aircraft hangars, manufacturing plants, auto dealership service bays, CNG repair facilities, ice arenas, natatoriums, military vehicle bays, agricultural buildings, and shipping docks. These spaces usually have high ceilings, large doors, ventilation loads, or spot-heating needs where heating the entire air volume is inefficient.

Combustion Research Corporation’s radiant infrared systems are documented to reduce operational heating costs by 30-50% compared with conventional forced-air systems, with some company value propositions noting savings up to 75% in energy costs. Actual results depend on building envelope, ceiling height, door cycles, fuel cost, zoning strategy, and system selection.

Sizing depends on square footage, ceiling height, insulation, door cycle frequency, fuel type, mounting height, and the application. CRC reference guidance suggests warehouses may range from 25-40 BTU per square foot for insulated low-bay spaces to 65+ BTU per square foot for poorly insulated or frequently opened facilities. Engineering calculators and representative support help refine final sizing.

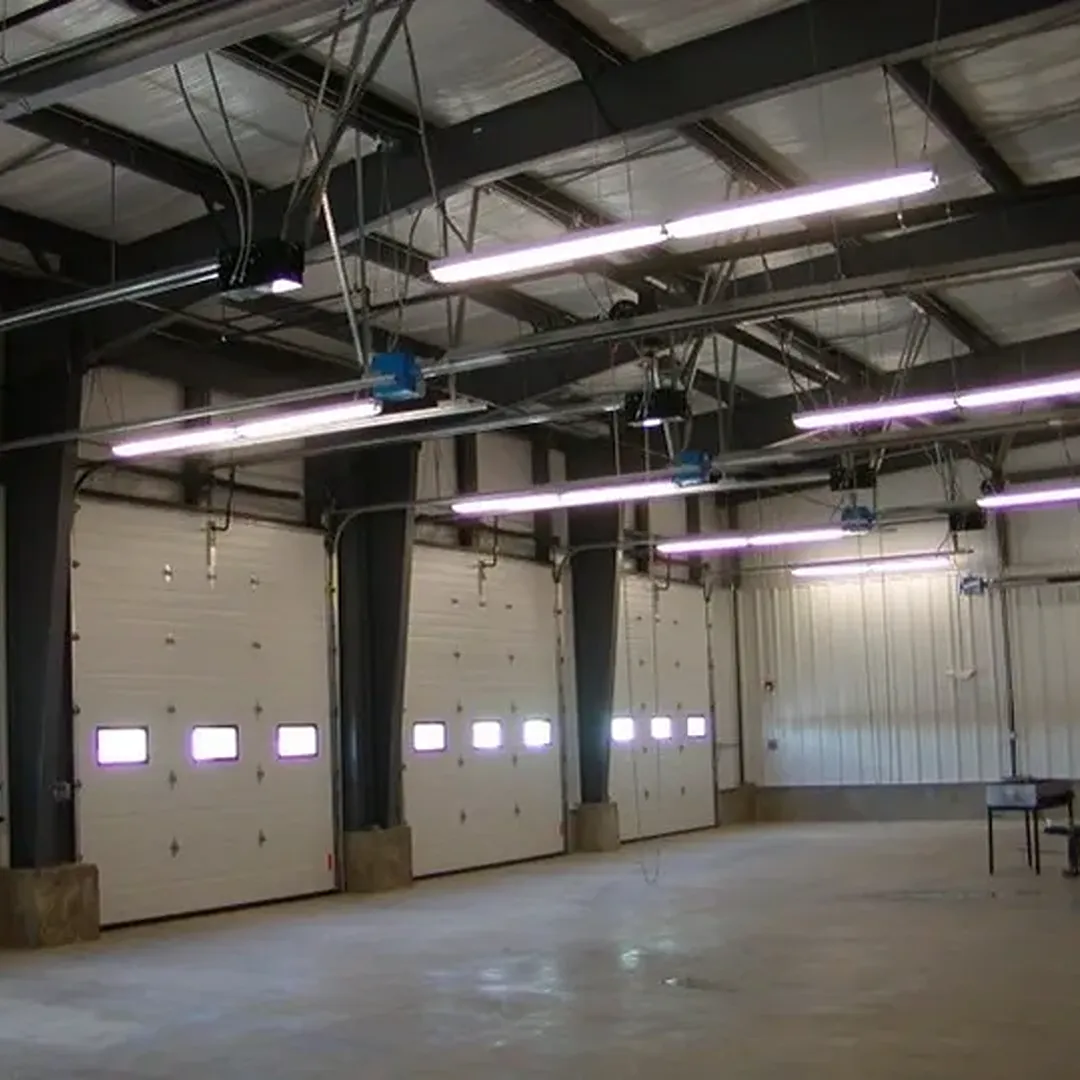

Gas-fired radiant tube systems use either vacuum-vented or power-vented configurations and are commonly selected for large commercial and industrial spaces. High-intensity ceramic infrared heaters provide rapid, spot-zone heat. Electric infrared systems are used where natural gas or propane is impractical, especially in protected outdoor or semi-outdoor commercial areas.

Clearance requirements vary by product, configuration, mounting orientation, and local code review. CRC product submittals specify clearances to combustibles, with typical radiant tube clearances varying by model and installation. Mechanical engineers and contractors should coordinate with the authority having jurisdiction and use manufacturer specifications during design and installation planning.

Combustion Research Corporation offers manufacturer-backed warranties including a 10-year radiant tube warranty for internally created corrosion on Omega II, Reflect-O-Ray, and Serengeti-IR systems, plus a 3-year burner control warranty. Synergy systems carry a 1-year limited warranty. Warranty terms should be reviewed with the selected product and representative during specification.
